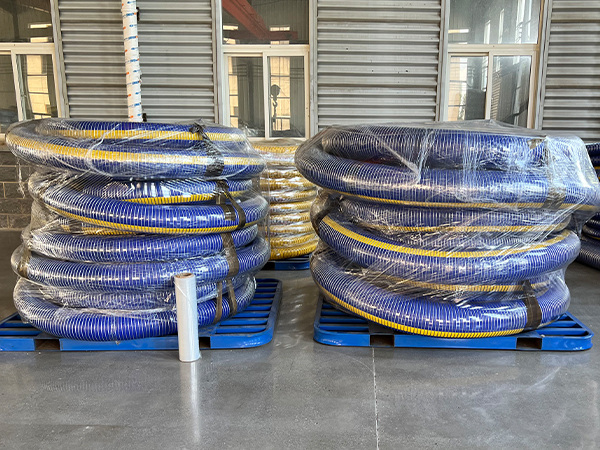

Composite Delivery Oil Hoses
Composite delivery oil hoses are made from multiple layers of spirally wrapped thermoplastic fabrics and films held together by a metal inner and outer wire helix.
Composite delivery oil hoses have excellent anti-static performance and can withstand high pressure, abrasion and high temperature working environments. During suction or discharge operations, the inner wire of the hose supports the hose wall, preventing the hose from collapsing under suction. In addition, the outer wire provides the hose with good pressure resistance, protecting the hose from external abrasion.
Composite Delivery Oil Hose Structure
| Item | Size | W.P. | Min B.R. | Weight | Length | ||
|---|---|---|---|---|---|---|---|
| Inch | mm | Bar | psi | mm | kg/m | m | |
| CO-1 | 1-1/2" | 40 | 20 | 290 | 280 | 1.9 | 40 |
| CO-2 | 2" | 50 | 20 | 290 | 310 | 2.2 | 40 |
| CO-3 | 3" | 80 | 20 | 290 | 360 | 2.8 | 40 |
| CO-4 | 4" | 100 | 20 | 290 | 450 | 3.9 | 40 |
| CO-5 | 5" | 125 | 20 | 290 | 560 | 4.5 | 20 |
| CO-6 | 6" | 150 | 20 | 290 | 720 | 5.5 | 20 |
| CO-7 | 8" | 200 | 20 | 290 | 860 | 7.6 | 20 |
| CO-8 | 10" | 250 | 20 | 290 | 900 | 8.9 | 20 |
| CO-9 | 12" | 300 | 20 | 290 | 950 | 9.5 | 20 |
